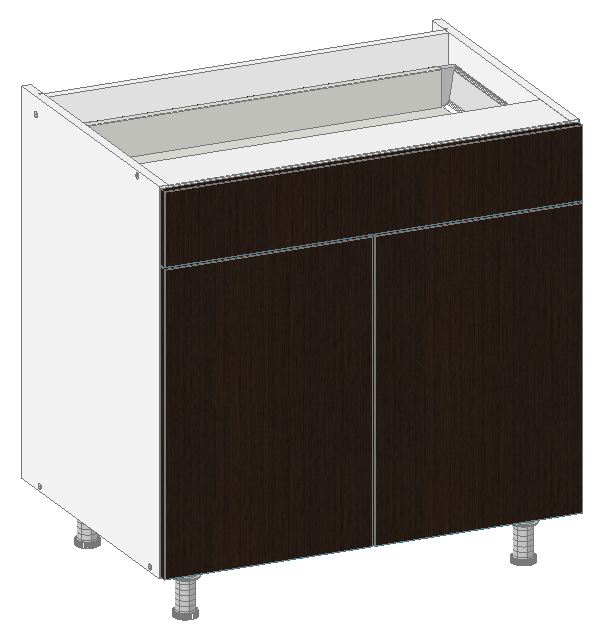

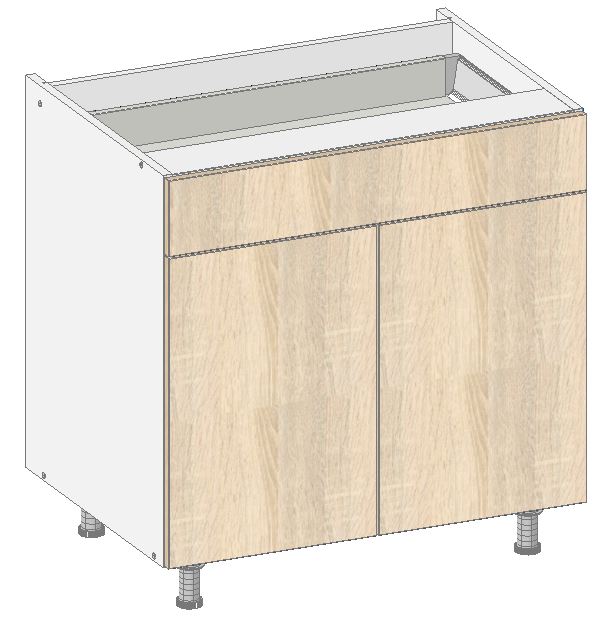

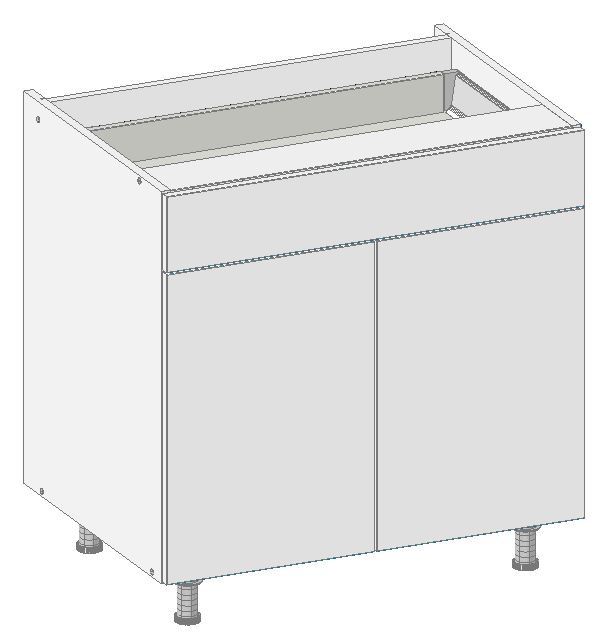

VD7 – Base unit with one drawer and one shelf, doors are opened to left and right.

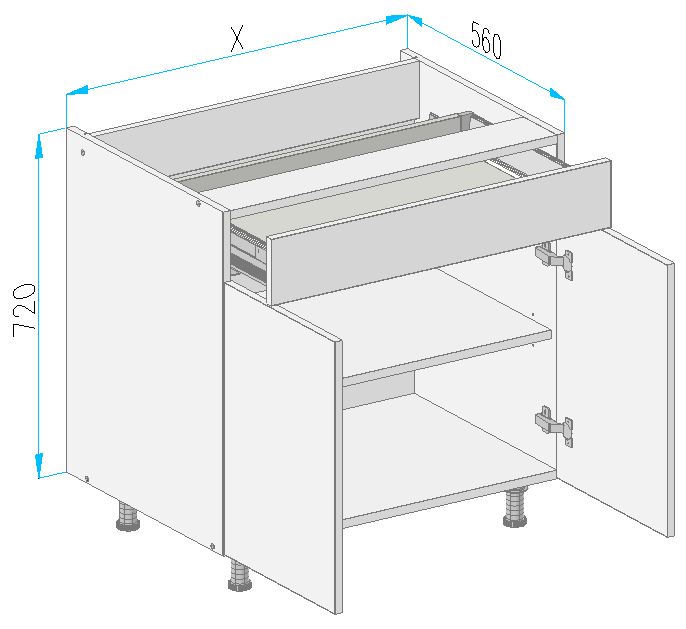

Height: 720mm + legs
Depth: 560mm
Standard width: 600mm, 700mm, 800mm, 900mm
NOTICE!!!
In case of ordering Vinyl Wrapped Doors by our online ordering system, you need to use door measurements and drilling codes from table below:
Cabinet width |
Height x Width x Door quantity |
Drilling code for door |
600mm |
570 x 296 x 2szt. |
VD7_600_F |
140 x 596 x 1szt. |
|
700mm |
570 x 346 x 2szt. |
VD7_700_F |
140 x 696 x 1szt. |
|
800mm |
570 x 396 x 2szt. |
VD7_800_F |
140 x 796 x 1szt. |
|
900mm |
570 x 446 x 2szt. |
VD7_900_F |
140 x 896 x 1szt. |
|
Non-standard width |
570 x WIDTH_F x 2szt. |
VD7_F |
140 x WIDTH_Sz x 1szt. |
|
WIDTH_F = (Cabinet width / 2) - 4mm
WIDTH_Sz = Cabinet width - 4mm
